NINGBO JANT ELECTRICAL APPLIANCE CO.,LTD

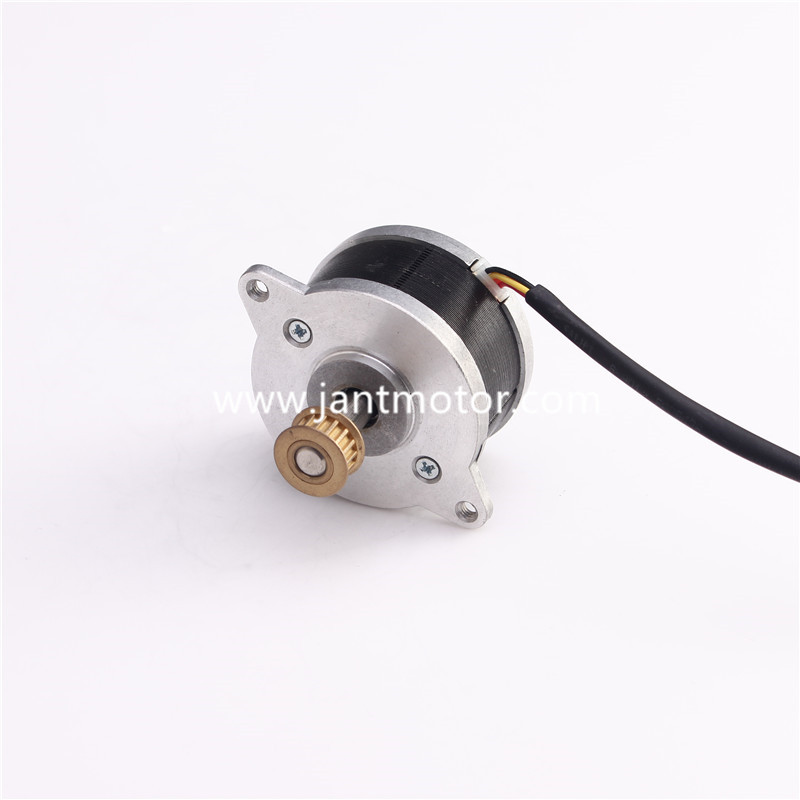

36BYGH0.9° stepper motor
Technique Parameter
Item | Specifications |
Step Angle Accuracy | ±5% (Full Step,No Load) |
Resistance Accuracy | ±10% |
Inductance Accuracy | ±20% |
Temperature Rise | 80℃Max.(rated current,2phase on) |
Ambient Temperature | - 10℃- +50℃ |
Insulation Resistance | 100MΩMin.500VDC |
Dielectric Strength | 500VAC for one minute |
Shaft Radial Play | 0.02Max.(450g-load) |
Shaft Axial Play | 0.08Max.(450g-load) |

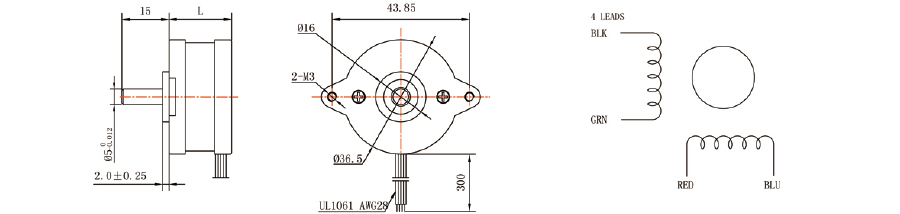

Technique Specification
Model No. | Rated Voltage | Current/Phase | Inductance/Phase | Resistance/Phase | Holding Torque | Leads | Weight | Length | |
V | A | Ω | mH | Oz-in | g-cm | Kg | mm | ||
36H12HM-0304A | 6.2 | 0.3 | 16.8 | 8 | 4.44 | 320 | 4 | 0.06 | 12.5 |
36H20HM-0504A | 6.0 | 0.5 | 12 | 9 | 15.3 | 1100 | 4 | 0.13 | 19.5 |
