NINGBO JANT ELECTRICAL APPLIANCE CO.,LTD

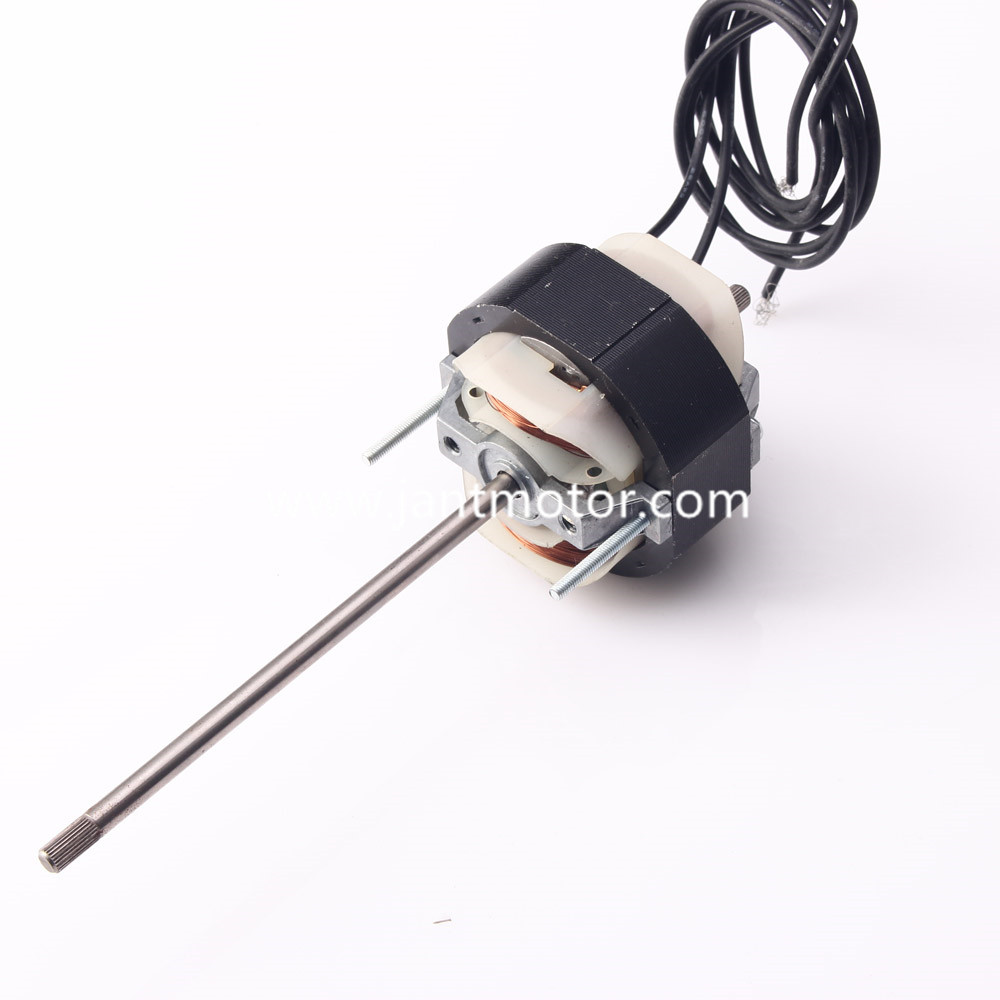

Shaded pole motor YJ58
ITEM MODEL | VOLTAGE | FREQUENCY | INSULATION | NO LOAD PERFORMANCE | |||
DIMENSION | |||||||
A | INPUTCURRENT | INPUTPOWER | SPEED | ||||
V | Hz | mm | A | W | r/min | ||
YJ58-12A | 220/240 | 50 | E | 12.5 | 0.1 | 12.5 | 2600 |
YJ58-12B | 120 | 60 | E | 12.5 | 0.16 | 12 | 3350 |
YJ58-16A | 220/240 | 50 | E | 16.5 | 0.11 | 13.5 | 2700 |
YJ58-16B | 120 | 60 | E | 16.5 | 0.17 | 14 | 3400 |
YJ58-20A | 220/240 | 50 | E | 20.5 | 0.115 | 13.5 | 2750 |
YJ58-20B | 120 | 60 | E | 20.5 | 0.175 | 15.5 | 3400 |
YJ58-30A | 220/240 | 50 | E | 30.5 | 0.145 | 15 | 2800 |
YJ58-30B | 120 | 60 | E | 30.5 | 0.19 | 17 | 3400 |
Motor size:
1. Stator diameter: 58mm
2. Shaft diameter: 4mm
3. Shaft length: As your request
4. Lead wire: according to your demands
5. Rotation: CW/CCW
6. Insulation class: E
Application:
1. It is commonly used in humidifier, fan-heater,air-cleaner,exhaust fan,hand drier,ventilation fan
2. Safe and reliable, low noise, characteristics hard, good starting, long life, etc.
3. This Range hoods motorcan be designed and produced according to your requests.
